rc_interface_wrapper_base Class Reference

#include <rc_interface_wrapper.h>

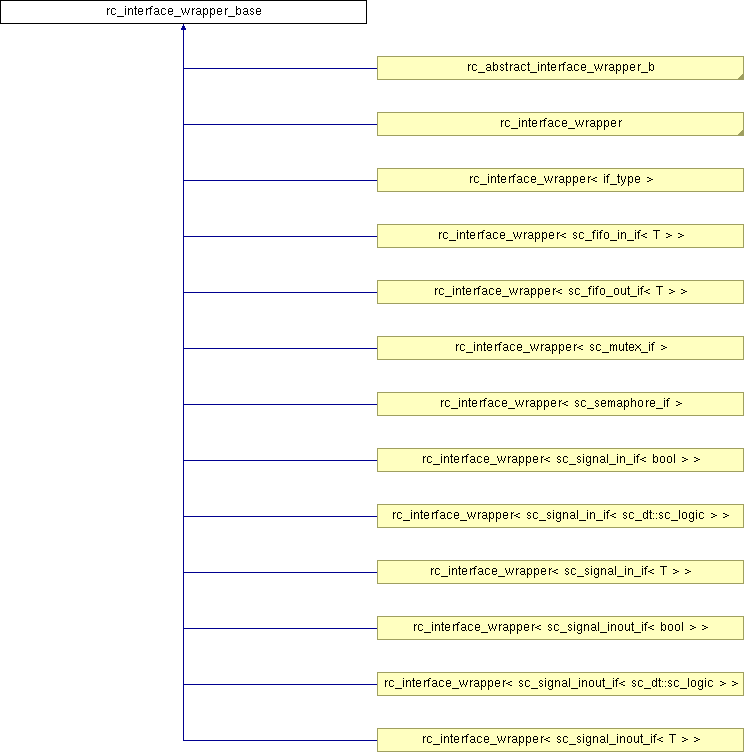

Inheritance diagram for rc_interface_wrapper_base:

List of all members.

---

Detailed Description

Base ABI of rc_interface_wrapper<IF>.

Definition at line 53 of file rc_interface_wrapper.h.

Public Member Functions
virtual std::string	get_interface_wrapper_name () const =0
virtual void	register_port (sc_port_base &port_, const char *if_typename)=0
virtual sc_interface &	get_wrapped_interface () const =0
virtual rc_event_forwarder_host *	get_event_forwarder_host ()=0
virtual	~rc_interface_wrapper_base ()
Protected Member Functions
virtual bool	set_wrapped_interface (sc_interface &if_)=0
virtual rc_process_behavior_change	begin_access_callback ()=0
virtual void	end_access_callback ()=0
Classes
class	access_base
	Base class of a temporary interface access object. More...
class	accessor_base
	Base ABI of an accessor. More...

---

Constructor & Destructor Documentation

virtual ~rc_interface_wrapper_base

(

)

[inline, virtual]

Definition at line 71 of file rc_interface_wrapper.h.

---

Member Function Documentation

virtual std::string get_interface_wrapper_name

(

)

const [pure virtual]

Implemented in rc_abstract_exportal::interface_wrapper, rc_portal_b::interface_wrapper, and rc_abstract_interface_wrapper_b.

virtual void register_port	(	sc_port_base &	port_,
		const char *	if_typename
	)			[pure virtual]

Implemented in rc_portal_b::interface_wrapper, and rc_abstract_interface_wrapper_b.

Referenced by rc_abstract_accessor_b::register_port().

virtual sc_interface& get_wrapped_interface

(

)

const [pure virtual]

Implemented in rc_abstract_interface_wrapper.

Referenced by wrapper_pool::add(), rc_exportal_base::bind_exclusively(), rc_abstract_exportal::get_interface(), rc_exportal_base::open(), rc_abstract_interface_wrapper_b::register_port(), and wrapper_pool::release().

virtual rc_event_forwarder_host* get_event_forwarder_host

(

)

[pure virtual]

Implemented in rc_abstract_interface_wrapper_b.

Referenced by rc_portal_base::add_event_forwarder_target(), and rc_portal_base::clear_event_forwarder_targets().

virtual bool set_wrapped_interface

(

sc_interface &

if_

)

[protected, pure virtual]

Implemented in rc_abstract_interface_wrapper.

virtual rc_process_behavior_change begin_access_callback

(

)

[protected, pure virtual]

Implemented in rc_abstract_exportal::interface_wrapper, rc_portal_b::interface_wrapper, and rc_abstract_interface_wrapper_b.

Referenced by rc_interface_wrapper_base::access_base::begin_access().

virtual void end_access_callback

(

)

[protected, pure virtual]

Implemented in rc_abstract_exportal::interface_wrapper, rc_portal_b::interface_wrapper, and rc_abstract_interface_wrapper_b.

Referenced by rc_interface_wrapper_base::access_base::end_access().

---

The documentation for this class was generated from the following file:

• rc_interface_wrapper.h

---
