rc_abstract_interface_wrapper Class Template Reference

#include <rc_abstract_interface_wrapper.h>

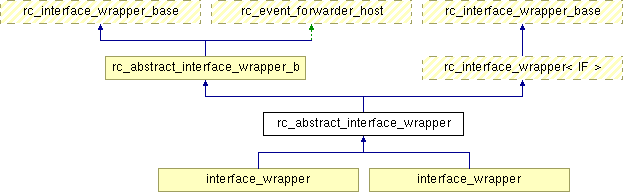

Inheritance diagram for rc_abstract_interface_wrapper:

List of all members.

---

Detailed Description

template<class IF>
class ReChannel::rc_abstract_interface_wrapper< IF >

Abstract interface wrapper class.

Definition at line 216 of file rc_abstract_interface_wrapper.h.

Public Types
typedef rc_interface_wrapper < IF >	interface_wrapper_type
typedef rc_interface_wrapper < IF >::accessor	accessor_type
Public Member Functions
virtual interface_access	get_interface_access ()
virtual nb_interface_access	get_nb_interface_access ()
virtual driver_access	get_driver_access (int driver_index)
virtual nb_driver_access	get_nb_driver_access (int driver_index)
virtual int	get_driver_count () const
virtual int	get_nb_driver_count () const
virtual sc_interface &	get_wrapped_interface () const
Protected Types
typedef rc_interface_wrapper < IF > ::interface_access	interface_access
typedef rc_interface_wrapper < IF > ::nb_interface_access	nb_interface_access
typedef rc_interface_wrapper < IF > ::driver_access	driver_access
typedef rc_interface_wrapper < IF > ::nb_driver_access	nb_driver_access
Protected Member Functions
	rc_abstract_interface_wrapper ()
	rc_abstract_interface_wrapper (IF &if_)
IF &	get_wrapped_if () const
virtual bool	set_wrapped_interface (sc_interface &if_)
virtual bool	set_wrapped_interface (IF &if_)
virtual IF &	rc_get_fallback_if () const
virtual IF *	nb_interface_access_callback ()
virtual IF *	interface_access_callback ()
virtual rc_nb_driver_object < IF > ::driver_access *	nb_driver_access_callback (int driver_index)
virtual rc_driver_object< IF > ::driver_access *	driver_access_callback (int driver_index)
rc_driver_object< IF > &	get_driver_object (int index)
	returns a (possibly newly created) blocking driver by its index
rc_nb_driver_object < IF > &	get_nb_driver_object (int index)
	returns a (possibly newly created) non-blocking driver by its index
rc_event_forwarder < IF > &	add_event_forwarder (const sc_event &source_event, boost::function< const sc_event &(IF *)> event_getter, const std::string &event_name=NULL)
	creates an event forwarder for the specified event getter method
rc_event_forwarder < IF > &	add_event_forwarder (IF &trigger_if, boost::function< const sc_event &(IF *)> event_getter, const std::string &event_name=NULL)
	creates an event forwarder for the specified event getter method
virtual	~rc_abstract_interface_wrapper ()
Private Types
typedef rc_abstract_interface_wrapper_b	base_type
typedef rc_driver_object< IF >	drv_obj_type
typedef rc_nb_driver_object < IF >	nb_drv_obj_type
Private Member Functions
	RC_STATIC_ASSERT_VALID_INTERFACE (IF)
virtual void *	_rc_create_driver_object (void *if_) const
virtual void *	_rc_create_nb_driver_object (void *if_) const
virtual void	_rc_set_driver_channel (void *drv_obj, void *if_) const
virtual void	_rc_set_nb_driver_channel (void *nb_drv_obj, void *if_) const
virtual void	_rc_delete_driver_object (void *drv_obj) const
virtual void	_rc_delete_nb_driver_object (void *nb_drv_obj) const

---

Member Typedef Documentation

typedef rc_abstract_interface_wrapper_b base_type [private]

Reimplemented in rc_abstract_exportal::interface_wrapper, and rc_portal_b::interface_wrapper.

Definition at line 223 of file rc_abstract_interface_wrapper.h.

typedef rc_driver_object<IF> drv_obj_type [private]

Definition at line 224 of file rc_abstract_interface_wrapper.h.

typedef rc_nb_driver_object<IF> nb_drv_obj_type [private]

Definition at line 225 of file rc_abstract_interface_wrapper.h.

typedef rc_interface_wrapper<IF>::interface_access interface_access [protected]

Definition at line 229 of file rc_abstract_interface_wrapper.h.

typedef rc_interface_wrapper<IF>::nb_interface_access nb_interface_access [protected]

Definition at line 231 of file rc_abstract_interface_wrapper.h.

typedef rc_interface_wrapper<IF>::driver_access driver_access [protected]

Definition at line 233 of file rc_abstract_interface_wrapper.h.

typedef rc_interface_wrapper<IF>::nb_driver_access nb_driver_access [protected]

Definition at line 235 of file rc_abstract_interface_wrapper.h.

typedef rc_interface_wrapper<IF> interface_wrapper_type

Definition at line 238 of file rc_abstract_interface_wrapper.h.

typedef rc_interface_wrapper<IF>::accessor accessor_type

Reimplemented in rc_abstract_exportal::interface_wrapper, and rc_portal_b::interface_wrapper.

Definition at line 239 of file rc_abstract_interface_wrapper.h.

---

Constructor & Destructor Documentation

rc_abstract_interface_wrapper

(

)

[inline, protected]

Definition at line 359 of file rc_abstract_interface_wrapper.h.

rc_abstract_interface_wrapper

(

IF &

if_

)

[inline, explicit, protected]

Definition at line 364 of file rc_abstract_interface_wrapper.h.

~rc_abstract_interface_wrapper

(

)

[inline, protected, virtual]

Definition at line 370 of file rc_abstract_interface_wrapper.h.

---

Member Function Documentation

RC_STATIC_ASSERT_VALID_INTERFACE

(

IF

)

[private]

Reimplemented from rc_interface_wrapper.

virtual interface_access get_interface_access

(

)

[inline, virtual]

Implements rc_interface_wrapper.

Definition at line 248 of file rc_abstract_interface_wrapper.h.

virtual nb_interface_access get_nb_interface_access

(

)

[inline, virtual]

Implements rc_interface_wrapper.

Definition at line 251 of file rc_abstract_interface_wrapper.h.

virtual driver_access get_driver_access

(

int

driver_index

)

[inline, virtual]

Implements rc_interface_wrapper.

Definition at line 254 of file rc_abstract_interface_wrapper.h.

virtual nb_driver_access get_nb_driver_access

(

int

driver_index

)

[inline, virtual]

Implements rc_interface_wrapper.

Definition at line 257 of file rc_abstract_interface_wrapper.h.

virtual int get_driver_count

(

)

const [inline, virtual]

Reimplemented from rc_abstract_interface_wrapper_b.

Definition at line 260 of file rc_abstract_interface_wrapper.h.

virtual int get_nb_driver_count

(

)

const [inline, virtual]

Reimplemented from rc_abstract_interface_wrapper_b.

Definition at line 263 of file rc_abstract_interface_wrapper.h.

virtual sc_interface& get_wrapped_interface

(

)

const [inline, virtual]

Implements rc_interface_wrapper_base.

Definition at line 266 of file rc_abstract_interface_wrapper.h.

IF& get_wrapped_if

(

)

const [inline, protected]

Reimplemented from rc_abstract_interface_wrapper_b.

Definition at line 271 of file rc_abstract_interface_wrapper.h.

Referenced by rc_abstract_interface_wrapper::get_wrapped_interface().

bool set_wrapped_interface

(

sc_interface &

if_

)

[inline, protected, virtual]

Implements rc_interface_wrapper_base.

Definition at line 403 of file rc_abstract_interface_wrapper.h.

Referenced by rc_portal_b::end_of_elaboration().

virtual bool set_wrapped_interface

(

IF &

if_

)

[inline, protected, virtual]

Implements rc_interface_wrapper.

Definition at line 276 of file rc_abstract_interface_wrapper.h.

IF & rc_get_fallback_if

(

)

const [inline, protected, virtual]

Definition at line 416 of file rc_abstract_interface_wrapper.h.

virtual IF* nb_interface_access_callback

(

)

[inline, protected, virtual]

Implements rc_interface_wrapper.

Definition at line 281 of file rc_abstract_interface_wrapper.h.

virtual IF* interface_access_callback

(

)

[inline, protected, virtual]

Implements rc_interface_wrapper.

Definition at line 284 of file rc_abstract_interface_wrapper.h.

virtual rc_nb_driver_object<IF>::driver_access* nb_driver_access_callback

(

int

driver_index

)

[inline, protected, virtual]

Implements rc_interface_wrapper.

Definition at line 288 of file rc_abstract_interface_wrapper.h.

virtual rc_driver_object<IF>::driver_access* driver_access_callback

(

int

driver_index

)

[inline, protected, virtual]

Implements rc_interface_wrapper.

Definition at line 292 of file rc_abstract_interface_wrapper.h.

rc_driver_object< IF > & get_driver_object

(

int

index

)

[inline, protected]

returns a (possibly newly created) blocking driver by its index

Definition at line 432 of file rc_abstract_interface_wrapper.h.

Referenced by rc_abstract_interface_wrapper::driver_access_callback().

rc_nb_driver_object< IF > & get_nb_driver_object

(

int

index

)

[inline, protected]

returns a (possibly newly created) non-blocking driver by its index

Definition at line 444 of file rc_abstract_interface_wrapper.h.

Referenced by rc_abstract_interface_wrapper::nb_driver_access_callback().

rc_event_forwarder< IF > & add_event_forwarder	(	const sc_event &	source_event,
		boost::function< const sc_event &(IF *)>	event_getter,
		const std::string &	event_name = NULL
	)			[inline, protected]

creates an event forwarder for the specified event getter method

Definition at line 378 of file rc_abstract_interface_wrapper.h.

Referenced by rc_abstract_interface_wrapper::add_event_forwarder(), and rc_abstract_exportal::interface_wrapper::interface_wrapper().

rc_event_forwarder< IF > & add_event_forwarder	(	IF &	trigger_if,
		boost::function< const sc_event &(IF *)>	event_getter,
		const std::string &	event_name = NULL
	)			[inline, protected]

creates an event forwarder for the specified event getter method

Definition at line 392 of file rc_abstract_interface_wrapper.h.

void * _rc_create_driver_object

(

void *

if_

)

const [inline, private, virtual]

Implements rc_abstract_interface_wrapper_b.

Definition at line 454 of file rc_abstract_interface_wrapper.h.

void * _rc_create_nb_driver_object

(

void *

if_

)

const [inline, private, virtual]

Implements rc_abstract_interface_wrapper_b.

Definition at line 462 of file rc_abstract_interface_wrapper.h.

void _rc_set_driver_channel	(	void *	drv_obj,
		void *	if_
	)			const [inline, private, virtual]

Implements rc_abstract_interface_wrapper_b.

Definition at line 470 of file rc_abstract_interface_wrapper.h.

void _rc_set_nb_driver_channel	(	void *	nb_drv_obj,
		void *	if_
	)			const [inline, private, virtual]

Implements rc_abstract_interface_wrapper_b.

Definition at line 479 of file rc_abstract_interface_wrapper.h.

void _rc_delete_driver_object

(

void *

drv_obj

)

const [inline, private, virtual]

Implements rc_abstract_interface_wrapper_b.

Definition at line 489 of file rc_abstract_interface_wrapper.h.

void _rc_delete_nb_driver_object

(

void *

nb_drv_obj

)

const [inline, private, virtual]

Implements rc_abstract_interface_wrapper_b.

Definition at line 498 of file rc_abstract_interface_wrapper.h.

---

The documentation for this class was generated from the following file:

• rc_abstract_interface_wrapper.h

---
