rc_event_forwarder_host Class Reference

#include <rc_event_forwarder.h>

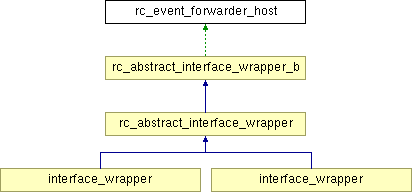

Inheritance diagram for rc_event_forwarder_host:

List of all members.

---

Detailed Description

Abstract base class of an event forwarder host.

Definition at line 199 of file rc_event_forwarder.h.

Public Types
typedef std::vector < std::string >	string_vector
Public Member Functions
virtual void	add_event_forwarder (rc_event_forwarder_base &forwarder, const sc_event &e, const std::string &event_name=NULL)=0
	Directly adds an event forwarder being sensitive to an event.
virtual void	add_event_forwarder_target (sc_interface &if_, rc_event_filter *filter=NULL)=0
	Adds a target interface to all event forwarders.
virtual bool	add_event_forwarder_target (const std::string &event_name, sc_interface &if_, rc_event_filter *filter=NULL)=0
	Adds a target interface to the specified event forwarder.
virtual bool	get_event_forwarder_target_count () const =0
	Returns the number of added event forwarder targets.
virtual void	clear_event_forwarder_targets ()=0
	Clears the target lists of all event forwarders.
virtual void	clear_event_forwarder_targets (const std::string &event_name)=0
	Clears the target lists of the specified event forwarder.
virtual string_vector	get_event_forwarder_names () const =0
	Returns the names of all added event forwarders.
virtual void	notify_event (const std::string &event_name)=0
	Notifies the specified dynamic event.
Protected Member Functions
virtual	~rc_event_forwarder_host ()
	Virtual destructor.

---

Member Typedef Documentation

typedef std::vector<std::string> string_vector

Reimplemented in rc_abstract_interface_wrapper_b.

Definition at line 202 of file rc_event_forwarder.h.

---

Constructor & Destructor Documentation

virtual ~rc_event_forwarder_host

(

)

[inline, protected, virtual]

Virtual destructor.

Definition at line 256 of file rc_event_forwarder.h.

---

Member Function Documentation

virtual void add_event_forwarder	(	rc_event_forwarder_base &	forwarder,
		const sc_event &	e,
		const std::string &	event_name = NULL
	)			[pure virtual]

Directly adds an event forwarder being sensitive to an event.

Implemented in rc_abstract_interface_wrapper_b.

virtual void add_event_forwarder_target	(	sc_interface &	if_,
		rc_event_filter *	filter = NULL
	)			[pure virtual]

Adds a target interface to all event forwarders.

Implemented in rc_abstract_interface_wrapper_b.

Referenced by rc_portal_base::add_event_forwarder_target(), and rc_exportal_base::add_event_forwarder_target().

virtual bool add_event_forwarder_target	(	const std::string &	event_name,
		sc_interface &	if_,
		rc_event_filter *	filter = NULL
	)			[pure virtual]

Adds a target interface to the specified event forwarder.

Implemented in rc_abstract_interface_wrapper_b.

virtual bool get_event_forwarder_target_count

(

)

const [pure virtual]

Returns the number of added event forwarder targets.

Implemented in rc_abstract_interface_wrapper_b.

virtual void clear_event_forwarder_targets

(

)

[pure virtual]

Clears the target lists of all event forwarders.

Implemented in rc_abstract_interface_wrapper_b.

Referenced by rc_portal_base::clear_event_forwarder_targets(), and rc_exportal_base::clear_event_forwarder_targets().

virtual void clear_event_forwarder_targets

(

const std::string &

event_name

)

[pure virtual]

Clears the target lists of the specified event forwarder.

Implemented in rc_abstract_interface_wrapper_b.

virtual string_vector get_event_forwarder_names

(

)

const [pure virtual]

Returns the names of all added event forwarders.

Implemented in rc_abstract_interface_wrapper_b.

virtual void notify_event

(

const std::string &

event_name

)

[pure virtual]

Notifies the specified dynamic event.

Implemented in rc_abstract_interface_wrapper_b.

Referenced by rc_exportal_base::notify_event().

---

The documentation for this class was generated from the following file:

• rc_event_forwarder.h

---
