rc_event_filter Class Reference

#include <rc_event_filter.h>

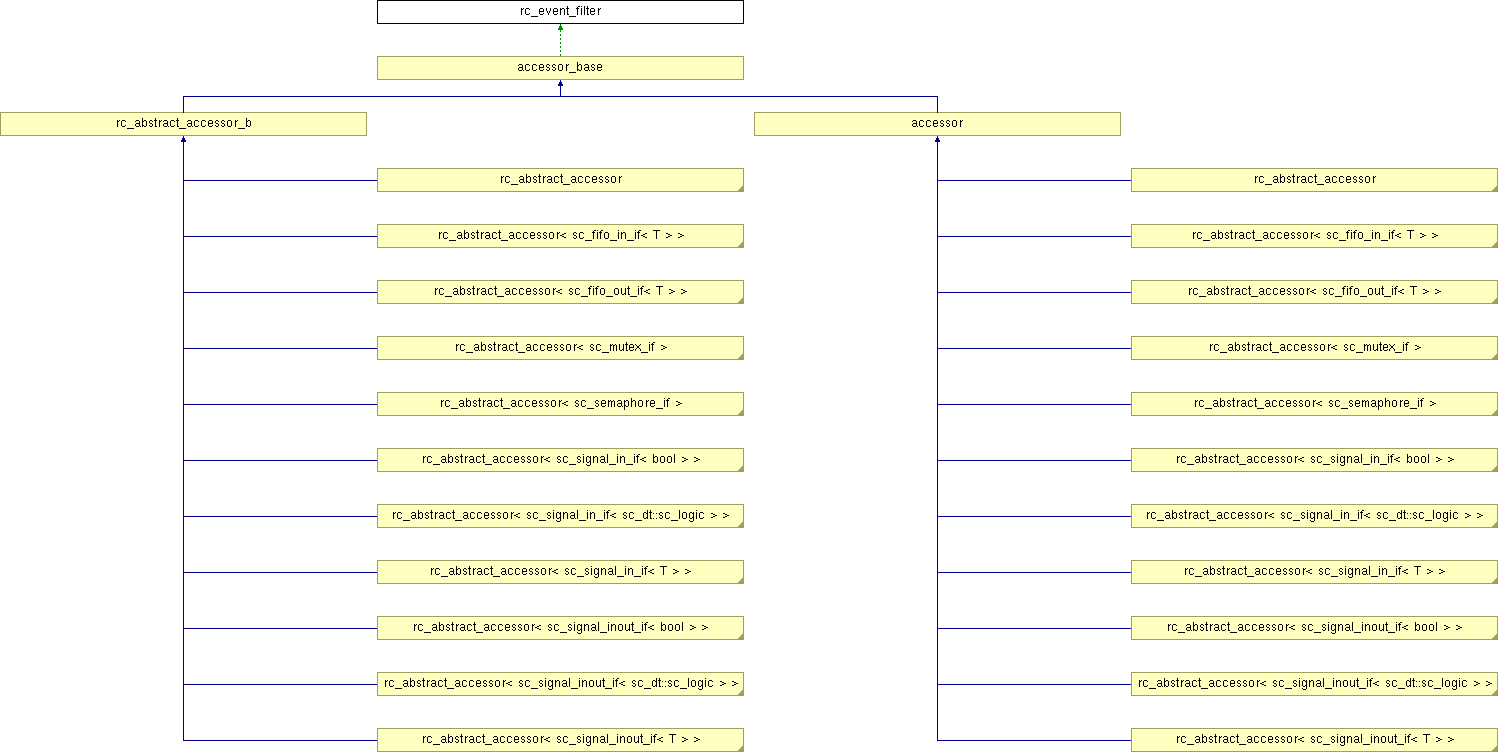

Inheritance diagram for rc_event_filter:

List of all members.

---

Detailed Description

ABI of the event filter.

Definition at line 50 of file rc_event_filter.h.

Public Member Functions
virtual bool	rc_on_event (const sc_event &e)=0
virtual void	rc_set_event_trigger (const sc_event &e, rc_event_trigger &t)=0
virtual void	rc_clear_event_trigger (const sc_event &e)=0
Protected Member Functions
virtual	~rc_event_filter ()

---

Constructor & Destructor Documentation

virtual ~rc_event_filter

(

)

[inline, protected, virtual]

Definition at line 62 of file rc_event_filter.h.

---

Member Function Documentation

virtual bool rc_on_event

(

const sc_event &

e

)

[pure virtual]

Implemented in rc_abstract_accessor_b, rc_fifo_in_filter, rc_fifo_out_filter, and rc_interface_wrapper_base::accessor_base.

Referenced by rc_event_forwarder::rc_trigger_event(), and rc_event_forwarder::trigger_event().

virtual void rc_set_event_trigger	(	const sc_event &	e,
		rc_event_trigger &	t
	)			[pure virtual]

Implemented in rc_abstract_accessor_b, rc_fifo_in_filter, rc_fifo_out_filter, and rc_interface_wrapper_base::accessor_base.

Referenced by rc_event_forwarder::add_target().

virtual void rc_clear_event_trigger

(

const sc_event &

e

)

[pure virtual]

Implemented in rc_abstract_accessor_b, rc_fifo_in_filter, rc_fifo_out_filter, and rc_interface_wrapper_base::accessor_base.

Referenced by rc_event_forwarder::clear_targets().

---

The documentation for this class was generated from the following file:

• rc_event_filter.h

---
