rc_signal< sc_dt::sc_logic > Class Template Reference

#include <rc_signal.h>

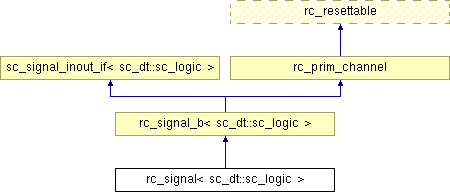

Inheritance diagram for rc_signal< sc_dt::sc_logic >:

List of all members.

---

Detailed Description

template<>
class ReChannel::rc_signal< sc_dt::sc_logic >

Resettable representation of sc_signal<sc_logic>.

Definition at line 280 of file rc_signal.h.

Public Member Functions
	rc_signal (const sc_module_name &name_=sc_gen_unique_name("signal"))
virtual const sc_event &	posedge_event () const
virtual const sc_event &	negedge_event () const
virtual bool	posedge () const
virtual bool	negedge () const
	operator const sc_dt::sc_logic & () const
this_type &	operator= (const sc_dt::sc_logic &value)
this_type &	operator= (const this_type &signal_)
Protected Member Functions
virtual void	update ()
	RC_ON_RESET ()
Protected Attributes
sc_event	m_posedge_event
sc_event	m_negedge_event
Private Types
typedef rc_signal < sc_dt::sc_logic >	this_type
typedef rc_signal_b < sc_dt::sc_logic >	base_type

---

Member Typedef Documentation

typedef rc_signal<sc_dt::sc_logic> this_type [private]

Definition at line 284 of file rc_signal.h.

typedef rc_signal_b<sc_dt::sc_logic> base_type [private]

Definition at line 285 of file rc_signal.h.

---

Constructor & Destructor Documentation

rc_signal

(

const sc_module_name &

name_ = sc_gen_unique_name("signal")

)

[inline, explicit]

Definition at line 288 of file rc_signal.h.

---

Member Function Documentation

virtual const sc_event& posedge_event

(

)

const [inline, virtual]

Definition at line 295 of file rc_signal.h.

virtual const sc_event& negedge_event

(

)

const [inline, virtual]

Definition at line 298 of file rc_signal.h.

virtual bool posedge

(

)

const [inline, virtual]

Definition at line 301 of file rc_signal.h.

virtual bool negedge

(

)

const [inline, virtual]

Definition at line 304 of file rc_signal.h.

operator const sc_dt::sc_logic &

(

)

const [inline]

Definition at line 309 of file rc_signal.h.

this_type& operator=

(

const sc_dt::sc_logic &

value

)

[inline]

Definition at line 312 of file rc_signal.h.

this_type& operator=

(

const this_type &

signal_

)

[inline]

Definition at line 315 of file rc_signal.h.

void update

(

)

[protected, virtual]

Reimplemented from rc_signal_b< sc_dt::sc_logic >.

Definition at line 149 of file rc_signal.cpp.

RC_ON_RESET

(

)

[inline, protected]

Reimplemented from rc_signal_b< sc_dt::sc_logic >.

Definition at line 322 of file rc_signal.h.

---

Member Data Documentation

sc_event m_posedge_event [protected]

Definition at line 336 of file rc_signal.h.

sc_event m_negedge_event [protected]

Definition at line 337 of file rc_signal.h.

---

The documentation for this class was generated from the following files:

• rc_signal.h
• rc_signal.cpp

---
