rc_sc_signal_rv Class Template Reference

#include <rc_sc_signal_rv.h>

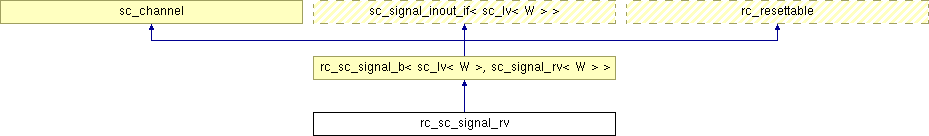

Inheritance diagram for rc_sc_signal_rv:

List of all members.

---

Detailed Description

template<int W>
class ReChannel::rc_sc_signal_rv< W >

Resettable rv signal (wrapping class sc_signal_rv<W>).

Definition at line 48 of file rc_sc_signal_rv.h.

Public Member Functions
	rc_sc_signal_rv (const sc_module_name &name_=sc_gen_unique_name("signal_rv"))
	o () const
rc_sc_signal_rv< W > &	operator= (const sc_lv< W > &value)
rc_sc_signal_rv< W > &	operator= (const rc_sc_signal_rv< W > &signal_)
Protected Member Functions
	RC_ON_RESET ()
Private Types
typedef rc_sc_signal_b < sc_lv< W >, sc_signal_rv< W > >	base_type
Static Private Attributes
static const sc_dt::sc_lv< W >	s_ZZZ = sc_dt::sc_lv<W>('Z')

---

Member Typedef Documentation

typedef rc_sc_signal_b<sc_lv<W>, sc_signal_rv<W> > base_type [private]

Definition at line 52 of file rc_sc_signal_rv.h.

---

Constructor & Destructor Documentation

rc_sc_signal_rv

(

const sc_module_name &

name_ = sc_gen_unique_name("signal_rv")

)

[inline, explicit]

Definition at line 55 of file rc_sc_signal_rv.h.

---

Member Function Documentation

o

(

)

const [inline]

Definition at line 60 of file rc_sc_signal_rv.h.

rc_sc_signal_rv<W>& operator=

(

const sc_lv< W > &

value

)

[inline]

Definition at line 63 of file rc_sc_signal_rv.h.

rc_sc_signal_rv<W>& operator=

(

const rc_sc_signal_rv< W > &

signal_

)

[inline]

Definition at line 66 of file rc_sc_signal_rv.h.

RC_ON_RESET

(

)

[inline, protected]

Reimplemented from rc_sc_signal_b< sc_lv< W >, sc_signal_rv< W > >.

Definition at line 71 of file rc_sc_signal_rv.h.

---

Member Data Documentation

const sc_dt::sc_lv< W > s_ZZZ = sc_dt::sc_lv<W>('Z') [inline, static, private]

Definition at line 80 of file rc_sc_signal_rv.h.

Referenced by rc_sc_signal_rv::RC_ON_RESET().

---

The documentation for this class was generated from the following file:

• rc_sc_signal_rv.h

---
