rc_sc_buffer< bool > Class Template Reference

#include <rc_sc_buffer.h>

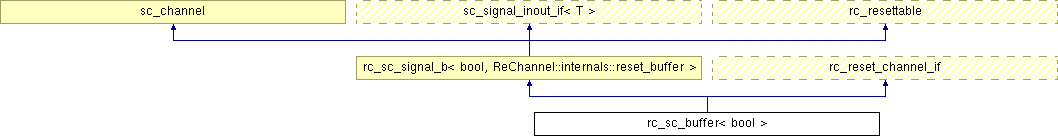

Inheritance diagram for rc_sc_buffer< bool >:

List of all members.

---

Detailed Description

template<>
class ReChannel::rc_sc_buffer< bool >

Resettable buffer (wrapping class sc_buffer<bool>).

Definition at line 74 of file rc_sc_buffer.h.

Public Member Functions
	rc_sc_buffer (const sc_module_name &name_=sc_gen_unique_name("buffer"))
virtual bool	posedge () const
virtual bool	negedge () const
virtual const sc_event &	posedge_event () const
virtual const sc_event &	negedge_event () const
virtual sc_reset *	is_reset () const
	operator const bool & () const
rc_sc_buffer< bool > &	operator= (const bool &value)
rc_sc_buffer< bool > &	operator= (const rc_sc_buffer< bool > &buffer_)
Protected Member Functions
virtual void	register_process_control (rc_process_control &pctrl, bool reset_level) const
	Registers a process control at the channel's reset list.
virtual void	unregister_process_control (rc_process_control &pctrl) const
	Unregisters a process control from the channel's reset list.
virtual bool	get_current_level () const
	Returns the reset channel's current level.
virtual const sc_signal< bool > *	get_underlying_reset_signal () const
	Returns the underlying SystemC signal (if such exists).
Private Types
typedef rc_sc_signal_b< bool, internals::reset_buffer >	base_type

---

Member Typedef Documentation

typedef rc_sc_signal_b<bool, internals::reset_buffer> base_type [private]

Definition at line 80 of file rc_sc_buffer.h.

---

Constructor & Destructor Documentation

rc_sc_buffer

(

const sc_module_name &

name_ = sc_gen_unique_name("buffer")

)

[inline, explicit]

Definition at line 83 of file rc_sc_buffer.h.

---

Member Function Documentation

virtual bool posedge

(

)

const [inline, virtual]

Definition at line 90 of file rc_sc_buffer.h.

virtual bool negedge

(

)

const [inline, virtual]

Definition at line 93 of file rc_sc_buffer.h.

virtual const sc_event& posedge_event

(

)

const [inline, virtual]

Definition at line 96 of file rc_sc_buffer.h.

virtual const sc_event& negedge_event

(

)

const [inline, virtual]

Definition at line 99 of file rc_sc_buffer.h.

virtual sc_reset* is_reset

(

)

const [inline, virtual]

Definition at line 103 of file rc_sc_buffer.h.

virtual void register_process_control	(	rc_process_control &	pctrl,
		bool	active_level
	)			const [inline, protected, virtual]

Registers a process control at the channel's reset list.

Parameters:

	pctrl	The process control object that shall be deactivated in case of a reset.
	active_level	The reset trigger level (high or low).

See also:

rc_process_control

Implements rc_reset_channel_if.

Definition at line 108 of file rc_sc_buffer.h.

virtual void unregister_process_control

(

rc_process_control &

pctrl

)

const [inline, protected, virtual]

Unregisters a process control from the channel's reset list.

Parameters:

pctrl

The process control object that shall be unregistered

The opposite of register_process_control().

See also:

rc_process_control

Implements rc_reset_channel_if.

Definition at line 114 of file rc_sc_buffer.h.

virtual bool get_current_level

(

)

const [inline, protected, virtual]

Returns the reset channel's current level.

Returns:

the current level of the channel.

Implements rc_reset_channel_if.

Definition at line 120 of file rc_sc_buffer.h.

virtual const sc_signal<bool>* get_underlying_reset_signal

(

)

const [inline, protected, virtual]

Returns the underlying SystemC signal (if such exists).

Returns:

a SystemC signal this channel is based on.

Note:

SystemC's reset mechanism is not standardised. Hence for some SystemC implementations (e.g. OSCI SystemC) it may be useful to have access to a native channel.

See also:

sc_core::sc_signal_inout_if::reset_is()

Implements rc_reset_channel_if.

Definition at line 123 of file rc_sc_buffer.h.

operator const bool &

(

)

const [inline]

Definition at line 129 of file rc_sc_buffer.h.

rc_sc_buffer<bool>& operator=

(

const bool &

value

)

[inline]

Definition at line 132 of file rc_sc_buffer.h.

rc_sc_buffer<bool>& operator=

(

const rc_sc_buffer< bool > &

buffer_

)

[inline]

Definition at line 135 of file rc_sc_buffer.h.

---

The documentation for this class was generated from the following file:

• rc_sc_buffer.h

---
