rc_fifo Class Template Reference

#include <rc_fifo.h>

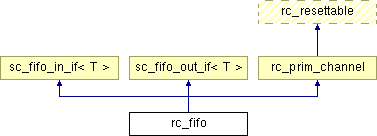

Inheritance diagram for rc_fifo:

List of all members.

---

Detailed Description

template<class T>
class ReChannel::rc_fifo< T >

Resettable representation of sc_fifo.

Definition at line 50 of file rc_fifo.h.

Public Member Functions
	rc_fifo (int size_=16)
	rc_fifo (const char *name_, int size_=16)
virtual const char *	kind () const
virtual void	register_port (sc_port_base &port_, const char *if_name_)
virtual void	read (T &value)
virtual T	read ()
virtual bool	nb_read (T &value)
virtual int	num_available () const
virtual void	write (const T &value)
virtual bool	nb_write (const T &value)
virtual int	num_free () const
virtual const sc_event &	data_written_event () const
virtual const sc_event &	data_read_event () const
	operator T ()
rc_fifo< T > &	operator= (const T &value)
virtual void	print (std::ostream &os=std::cout) const
virtual void	dump (std::ostream &os=std::cout) const
Protected Member Functions
virtual void	update ()
	RC_ON_INIT_RESETTABLE ()
	RC_ON_RESET ()
Protected Attributes
std::deque< T >	m_deque
const unsigned int	m_max_size
unsigned int	m_num_read
unsigned int	m_num_written
sc_event	m_data_read_event
sc_event	m_data_written_event
const sc_port_base *	m_reader_port
const sc_port_base *	m_writer_port
std::vector< T >	m_reset_values
Private Member Functions
	rc_fifo (const rc_fifo< T > &other)
rc_fifo< T > &	operator= (const rc_fifo< T > &other)

---

Constructor & Destructor Documentation

rc_fifo

(

int

size_ = 16

)

[inline, explicit]

Definition at line 57 of file rc_fifo.h.

rc_fifo	(	const char *	name_,
		int	size_ = 16
	)			[inline, explicit]

Definition at line 63 of file rc_fifo.h.

rc_fifo

(

const rc_fifo< T > &

other

)

[private]

---

Member Function Documentation

virtual const char* kind

(

)

const [inline, virtual]

Definition at line 69 of file rc_fifo.h.

void register_port	(	sc_port_base &	port_,
		const char *	if_name_
	)			[inline, virtual]

Definition at line 229 of file rc_fifo.h.

void read

(

T &

value

)

[inline, virtual]

Definition at line 169 of file rc_fifo.h.

T read

(

)

[inline, virtual]

Definition at line 181 of file rc_fifo.h.

Referenced by rc_fifo::operator T().

bool nb_read

(

T &

value

)

[inline, virtual]

Definition at line 189 of file rc_fifo.h.

int num_available

(

)

const [inline, virtual]

Definition at line 151 of file rc_fifo.h.

void write

(

const T &

value

)

[inline, virtual]

Definition at line 203 of file rc_fifo.h.

Referenced by rc_fifo::operator=().

bool nb_write

(

const T &

value

)

[inline, virtual]

Definition at line 214 of file rc_fifo.h.

int num_free

(

)

const [inline, virtual]

Definition at line 160 of file rc_fifo.h.

virtual const sc_event& data_written_event

(

)

const [inline, virtual]

Definition at line 83 of file rc_fifo.h.

virtual const sc_event& data_read_event

(

)

const [inline, virtual]

Definition at line 85 of file rc_fifo.h.

operator T

(

)

[inline]

Definition at line 88 of file rc_fifo.h.

rc_fifo<T>& operator=

(

const T &

value

)

[inline]

Definition at line 91 of file rc_fifo.h.

void print

(

std::ostream &

os = std::cout

)

const [inline, virtual]

Definition at line 251 of file rc_fifo.h.

void dump

(

std::ostream &

os = std::cout

)

const [inline, virtual]

Definition at line 263 of file rc_fifo.h.

void update

(

)

[inline, protected, virtual]

Definition at line 277 of file rc_fifo.h.

RC_ON_INIT_RESETTABLE

(

)

[inline, protected]

Reimplemented from rc_prim_channel.

Definition at line 101 of file rc_fifo.h.

RC_ON_RESET

(

)

[inline, protected]

Reimplemented from rc_prim_channel.

Definition at line 110 of file rc_fifo.h.

rc_fifo<T>& operator=

(

const rc_fifo< T > &

other

)

[private]

---

Member Data Documentation

std::deque<T> m_deque [protected]

Definition at line 129 of file rc_fifo.h.

Referenced by rc_fifo::dump(), rc_fifo::nb_read(), rc_fifo::nb_write(), rc_fifo::num_available(), rc_fifo::num_free(), rc_fifo::print(), rc_fifo::RC_ON_INIT_RESETTABLE(), rc_fifo::RC_ON_RESET(), rc_fifo::read(), and rc_fifo::write().

const unsigned int m_max_size [protected]

Definition at line 130 of file rc_fifo.h.

Referenced by rc_fifo::num_free().

unsigned int m_num_read [protected]

Definition at line 131 of file rc_fifo.h.

Referenced by rc_fifo::nb_read(), rc_fifo::RC_ON_RESET(), rc_fifo::read(), and rc_fifo::update().

unsigned int m_num_written [protected]

Definition at line 132 of file rc_fifo.h.

Referenced by rc_fifo::nb_write(), rc_fifo::num_available(), rc_fifo::RC_ON_RESET(), rc_fifo::update(), and rc_fifo::write().

sc_event m_data_read_event [protected]

Definition at line 134 of file rc_fifo.h.

Referenced by rc_fifo::data_read_event(), rc_fifo::RC_ON_RESET(), rc_fifo::update(), and rc_fifo::write().

sc_event m_data_written_event [protected]

Definition at line 135 of file rc_fifo.h.

Referenced by rc_fifo::data_written_event(), rc_fifo::RC_ON_RESET(), rc_fifo::read(), and rc_fifo::update().

const sc_port_base* m_reader_port [protected]

Definition at line 137 of file rc_fifo.h.

Referenced by rc_fifo::register_port().

const sc_port_base* m_writer_port [protected]

Definition at line 138 of file rc_fifo.h.

Referenced by rc_fifo::register_port().

std::vector<T> m_reset_values [protected]

Definition at line 140 of file rc_fifo.h.

Referenced by rc_fifo::RC_ON_INIT_RESETTABLE(), and rc_fifo::RC_ON_RESET().

---

The documentation for this class was generated from the following file:

• rc_fifo.h

---
