rc_driver_object_base Class Reference

#include <rc_driver_object.h>

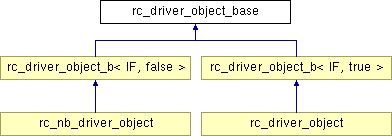

Inheritance diagram for rc_driver_object_base:

Detailed Description

This class is the base class of a driver object.

It contains all the infrastructure necessary to cache the calls that have to be forwarded. There also is a handle to the process that represents the driver. A driver object normally uses an own process instance which performs the forwarding. In case of non-blocking drivers it is also possible to shares one static process among all other driver objects.

See also:: rc_driver_object.h, RC_USE_SHARED_METHOD_DRIVER

Definition at line 125 of file rc_driver_object.h.


Protected Types
typedef boost::function < void(void)>	call_type
	The type of the forwarded function object.
typedef std::vector < write_call >	write_call_vector
	The type of the write call vector.
typedef std::vector < write_call > ::iterator	write_call_iterator
	The type of the write call vector iterator.
Protected Member Functions
	rc_driver_object_base ()
	Constructor.
virtual	~rc_driver_object_base ()
	Virtual destructor.
virtual void	writer_method_proc ()
	The writer method process.
virtual void	writer_thread_proc ()
	The writer thread process.
Static Protected Member Functions
static void	safe_event_notify (sc_event &e)
	Notifies an event.
Protected Attributes
sc_process_handle	m_hproc
	Handle of the forwarding process of this driver object.
write_call_vector *	m_write_call_vector
	Vector caching all pending calls of this driver object.
sc_event *	m_pending_write_event
	Pending write event.
bool	m_pending_write_event_notified_flag
	Flag to indicate whether the write event was notified.
bool *	m_pending_write_event_notified
	Pointer to the notification flag used by this driver object.
Static Protected Attributes
static sc_process_handle	s_hproc
	shared static driver process for non-blocking interfaces
static write_call_vector	s_write_call_vector
	shared write call vector
static sc_event	s_pending_write_event
	shared pending write event
static bool	s_pending_write_event_notified_flag = false
	shared notification flag
Private Member Functions
	rc_driver_object_base (const rc_driver_object_base &dobj)
	(disabled)
rc_driver_object_base &	operator= (const rc_driver_object_base &dobj)
	(disabled)
Static Private Member Functions
static void	s_writer_method_proc ()
	The static method process that forwards non-blocking calls.
static sc_process_handle	s_create_method_process ()
	Creates a method process that forwards non-blocking calls .
Friends
class	internals::driver_object::nb_driver_access_call
	Gives the non-blocking call object access to the members.
class	internals::driver_object::driver_access_call
	Gives the blocking call object access to the members.
Classes
struct	write_call
	Class representing a write call (+properties). More...

Member Typedef Documentation

typedef boost::function<void (void)> call_type [protected]

The type of the forwarded function object.

A forwarded function object is always of the form: void f(void).

Reimplemented in rc_driver_object_b< IF, false >, and rc_driver_object_b< IF, true >.

Definition at line 141 of file rc_driver_object.h.

typedef std::vector<write_call> write_call_vector [protected]

The type of the write call vector.

Reimplemented in rc_driver_object_b< IF, false >, and rc_driver_object_b< IF, true >.

Definition at line 151 of file rc_driver_object.h.

typedef std::vector<write_call>::iterator write_call_iterator [protected]

The type of the write call vector iterator.

Reimplemented in rc_driver_object_b< IF, false >, and rc_driver_object_b< IF, true >.

Definition at line 155 of file rc_driver_object.h.

Constructor & Destructor Documentation

rc_driver_object_base ( ) [protected]

Constructor.

Definition at line 71 of file rc_driver_object.cpp.

~rc_driver_object_base ( ) [protected, virtual]

Virtual destructor.

Definition at line 91 of file rc_driver_object.cpp.

rc_driver_object_base ( const rc_driver_object_base & dobj ) [private]

(disabled)

Member Function Documentation

void writer_method_proc ( ) [protected, virtual]

The writer method process.

Definition at line 105 of file rc_driver_object.cpp.

void writer_thread_proc ( ) [protected, virtual]

The writer thread process.

Definition at line 122 of file rc_driver_object.cpp.

void safe_event_notify ( sc_event & e ) [static, protected]

Notifies an event.

Parameters:

the event to be notified

Notifies an event. This method can be called irrespectively of the current active SystemC's simulation phase.

Note:: May even be called during the update phase.

Attention:: This function relies on a SystemC kernel that either notifies the event or throws an error if sc_event::notify() is called during the update phase. Another reaction will result in undefined behaviour.

Definition at line 150 of file rc_driver_object.cpp.

Referenced by driver_access_call::operator()(), driver_access_call< void >::operator()(), and nb_driver_access_call::operator()().

void s_writer_method_proc ( ) [static, private]

The static method process that forwards non-blocking calls.

Definition at line 52 of file rc_driver_object.cpp.

Referenced by rc_driver_object_base::rc_driver_object_base().

static sc_process_handle s_create_method_process ( ) [static, private]

Creates a method process that forwards non-blocking calls .

rc_driver_object_base& operator= ( const rc_driver_object_base & dobj ) [private]
