rc_accessor< sc_signal_in_if< bool > > Class Template Reference

#include <rc_signal_accessors.h>

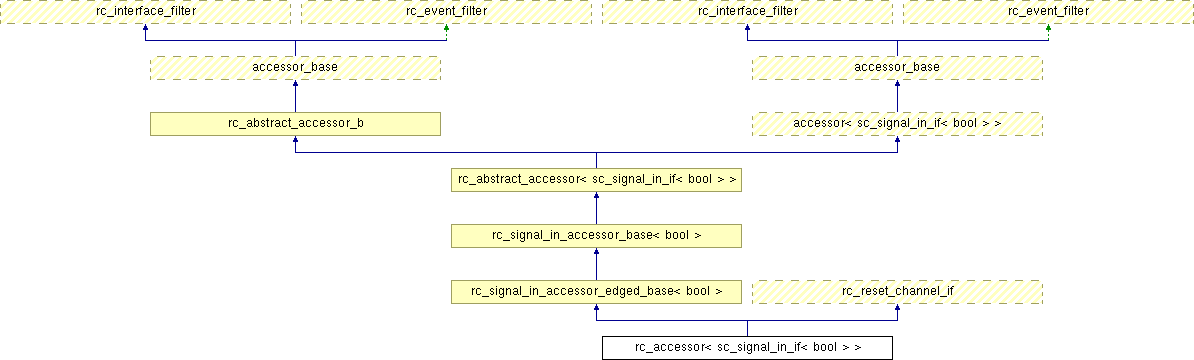

Inheritance diagram for rc_accessor< sc_signal_in_if< bool > >:

List of all members.

---

Detailed Description

template<>
class ReChannel::rc_accessor< sc_signal_in_if< bool > >

Accessor for signal<bool> (input).

Definition at line 214 of file rc_signal_accessors.h.

Public Types
typedef sc_signal_in_if < bool >	if_type
Public Member Functions
	rc_accessor ()
virtual sc_reset *	is_reset () const
Protected Member Functions
virtual void	register_process_control (rc_process_control &pctrl, bool active_level) const
	Registers a process control at the channel's reset list.
virtual void	unregister_process_control (rc_process_control &pctrl) const
	Unregisters a process control from the channel's reset list.
virtual bool	get_current_level () const
	Returns the reset channel's current level.
virtual const sc_signal< bool > *	get_underlying_reset_signal () const
	Returns the underlying SystemC signal (if such exists).
Private Types
typedef rc_accessor < sc_signal_in_if < bool > >	this_type
typedef internals::reset_signal	reset_signal_type
Private Member Functions
reset_signal_type &	_rc_get_reset_signal () const
void	_rc_reset_updater_proc ()
Private Attributes
reset_signal_type *	p_reset_signal

---

Member Typedef Documentation

typedef rc_accessor<sc_signal_in_if<bool> > this_type [private]

Reimplemented from rc_abstract_accessor< sc_signal_in_if< bool > >.

Definition at line 219 of file rc_signal_accessors.h.

typedef internals::reset_signal reset_signal_type [private]

Definition at line 220 of file rc_signal_accessors.h.

typedef sc_signal_in_if<bool> if_type

Reimplemented from rc_signal_in_accessor_edged_base< bool >.

Definition at line 223 of file rc_signal_accessors.h.

---

Constructor & Destructor Documentation

rc_accessor

(

)

[inline]

Definition at line 225 of file rc_signal_accessors.h.

---

Member Function Documentation

virtual sc_reset* is_reset

(

)

const [inline, virtual]

Definition at line 230 of file rc_signal_accessors.h.

void register_process_control	(	rc_process_control &	pctrl,
		bool	active_level
	)			const [protected, virtual]

Registers a process control at the channel's reset list.

Parameters:

	pctrl	The process control object that shall be deactivated in case of a reset.
	active_level	The reset trigger level (high or low).

See also:

rc_process_control

Implements rc_reset_channel_if.

Definition at line 41 of file rc_signal_accessors.cpp.

void unregister_process_control

(

rc_process_control &

pctrl

)

const [protected, virtual]

Unregisters a process control from the channel's reset list.

Parameters:

pctrl

The process control object that shall be unregistered

The opposite of register_process_control().

See also:

rc_process_control

Implements rc_reset_channel_if.

Definition at line 48 of file rc_signal_accessors.cpp.

virtual bool get_current_level

(

)

const [inline, protected, virtual]

Returns the reset channel's current level.

Returns:

the current level of the channel.

Implements rc_reset_channel_if.

Definition at line 248 of file rc_signal_accessors.h.

virtual const sc_signal<bool>* get_underlying_reset_signal

(

)

const [inline, protected, virtual]

Returns the underlying SystemC signal (if such exists).

Returns:

a SystemC signal this channel is based on.

Note:

SystemC's reset mechanism is not standardised. Hence for some SystemC implementations (e.g. OSCI SystemC) it may be useful to have access to a native channel.

See also:

sc_core::sc_signal_inout_if::reset_is()

Implements rc_reset_channel_if.

Definition at line 251 of file rc_signal_accessors.h.

rc_accessor< sc_signal_in_if< bool > >::reset_signal_type & _rc_get_reset_signal

(

)

const [private]

Definition at line 55 of file rc_signal_accessors.cpp.

void _rc_reset_updater_proc

(

)

[private]

Definition at line 75 of file rc_signal_accessors.cpp.

---

Member Data Documentation

reset_signal_type* p_reset_signal [mutable, private]

Definition at line 261 of file rc_signal_accessors.h.

---

The documentation for this class was generated from the following files:

• rc_signal_accessors.h
• rc_signal_accessors.cpp

---
